Features and Benefits
-
Full length sleeve ensure no concrete to dowel bonding
-
Provision for longitudinal expansion in the ends of
all sleeves
-
Rectangular sleeves for square dowels allow for lateral
expansion
-
Injection moulded for accurate tolerances and maximum
straightness
-
Stiffening ribs to minimise distortion
-

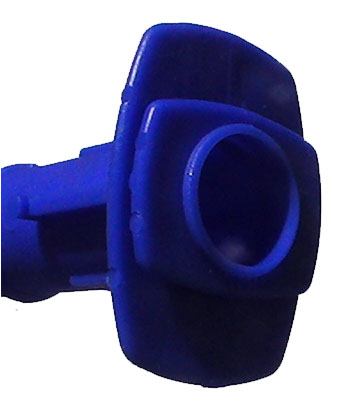

Simply twist & turn into knock-outs in Connolly Key Joint
-
Can be used as a face fixing sleeve on conventional
timber or steel formwork
- Can be used as part of a dowel cradle or basket
- Length can be trimmed to suit any dowel length
- Support leg/stand allows extra support to ensure correct alignment
is maintained during pour
- Unique end closure prevents slurry entering around square
dowels
- All UDS's (excepting 33mm round) have legs/stands that can be easily snapped off for height adjustment.
ACCESSORY PRODUCTS: (included with sleeve)

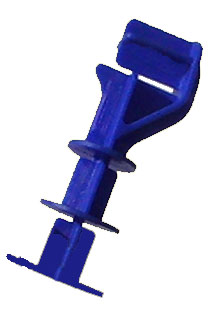

-Support Stand/leg (to suit individual sizes)
- Face Fixing Plugs (to suit individual sizes)

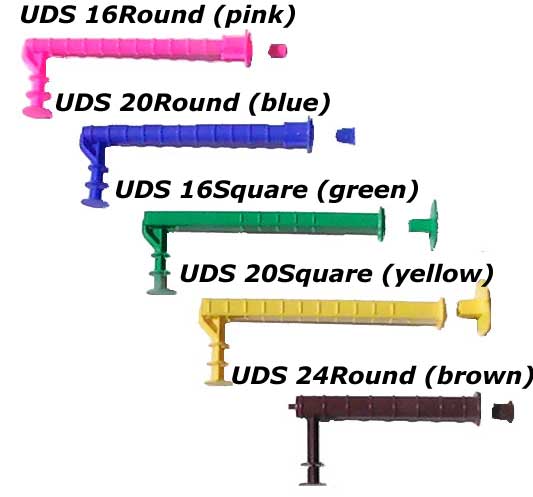

UDS 20mm round sleeve (blue) with stand/leg inserted
Call our office for the latest update on 33mm round dowel sleeves.
