Ground Crack Inducers

  • Overview
  • Installation
  • Specifications
  • Request Drawings/Info

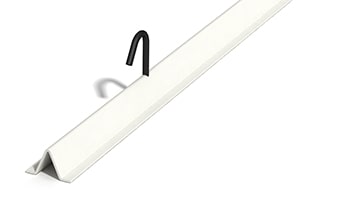

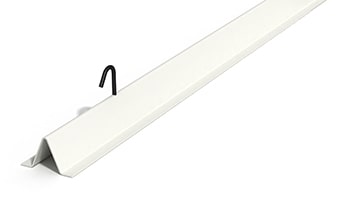

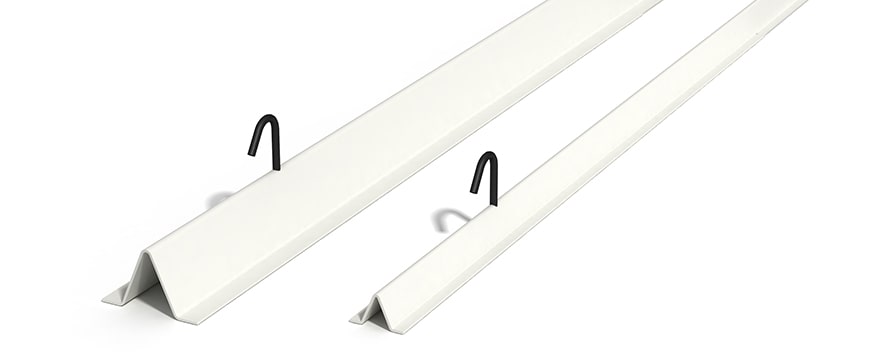

Connolly Ground Crack Inducers are designed to induce controlled cracking at specific points in concrete slabs. The rigid PVC profile is held in place with the supplied pins and commonly used below Connolly Dowel Cradles. They can be used with a saw cut or Connolly Crack Inducer at the top of the concrete slab.

Features

  • Easy installation
  • Secures easily to the ground using PC pins to prevent movement during pours
  • Lightweight and durable
  • Ideally suited for use with the Connolly Dowel Cradles
  • Can save money by helping reduce slab cutting depth​

Step 1

Position Ground Crack Inducer at joint location.



Step 2



Secure Ground Crack Inducer by driving the supplied pins through the hole in the profile.

ProductSquare Dowels
GCI25-3m
Square Dowels
GCI50-3m
Properties
Height [mm]2550
Length [m]3.00
ColourWhite
MaterialUV stabilised PVC
No of pins3

Use the form below to send us an email with your enquiry or request for drawings.
